Combine curves

Purpose of this function is to create a curve by putting together parts of existing curves.

Target channel specifies the channel, from which the upper part of the frequency range is taken. Magnitude and phase of this channel are preserved.

Source channel specifies the channel which shall be appended at the bottom end of the Target channel. Magnitude and phase are continuously merged into the Target channel.

Frequency defines the frequency at which the two segments are put together.

Delete source decides whether the Source channel is preserved or deleted.

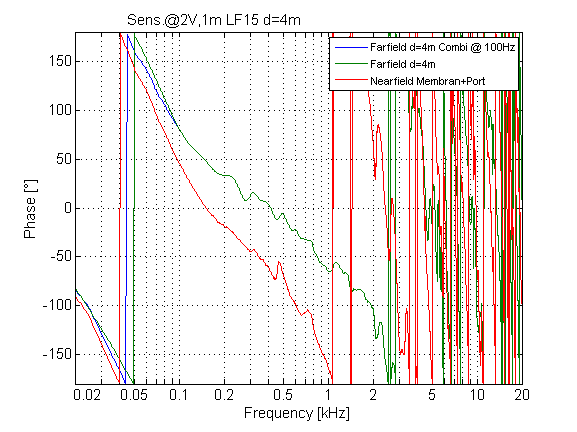

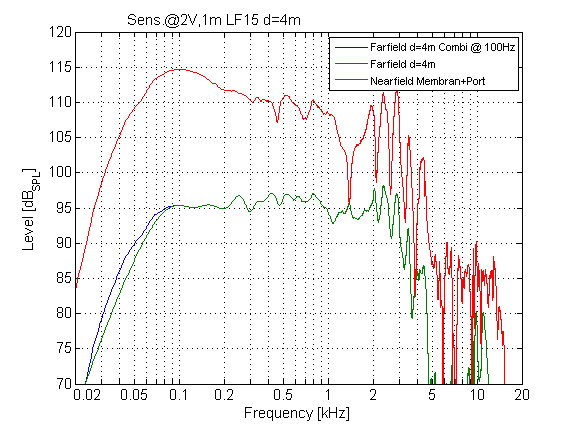

The following example shows the windowed measurement of a 15” woofer, the nearfield frequency response and the combined curve as magnitude- and phase-plot (below).
