Plotting multiple
Plotting multiple allows plotting 2 or 3 different files in one diagram. This function is available for time domain and frequency domain.
In the Plotting setup graphic format, resolution and further options are to be set.
Under Data Source Setup the data sources as well as options for the origin of x-axis scaling, comment and file name are to be defined.

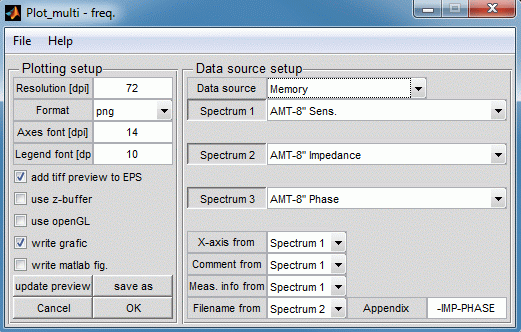

- Data Source Memory: the files present in the memory are available for selection from the
Spectrumsor Time Signals list

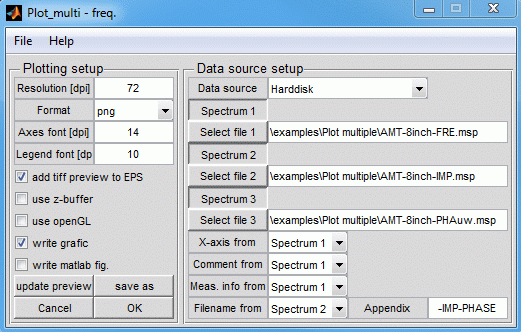

- Data Source Harddisk: files can be selected from data folders at will. The directories must be located under the Base path.

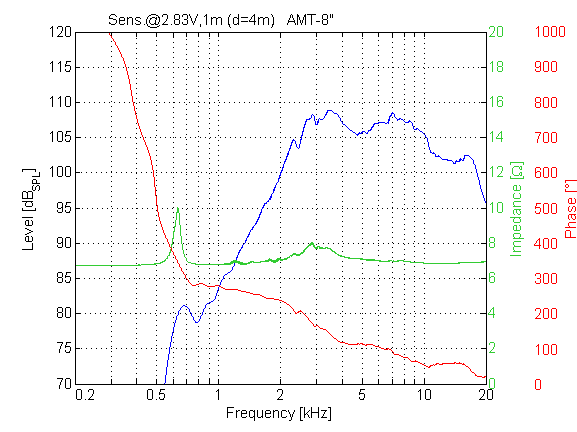

The following picture shows an example for a plot from 3 files containing sensitivity, impedance and unwrapped phase.

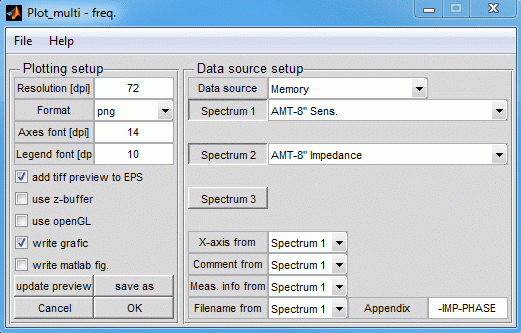

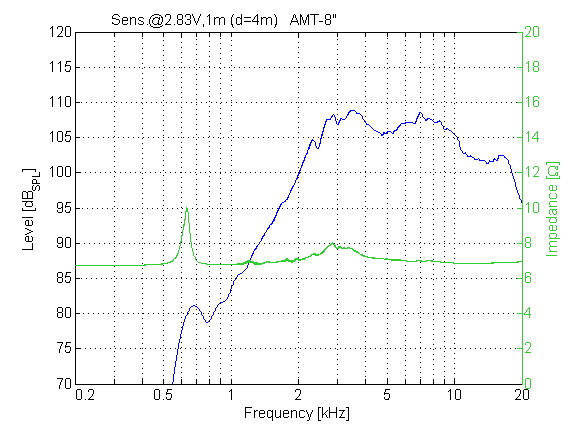

If only two files shall be plotted, the third plot must be switched off in the Data source setup:

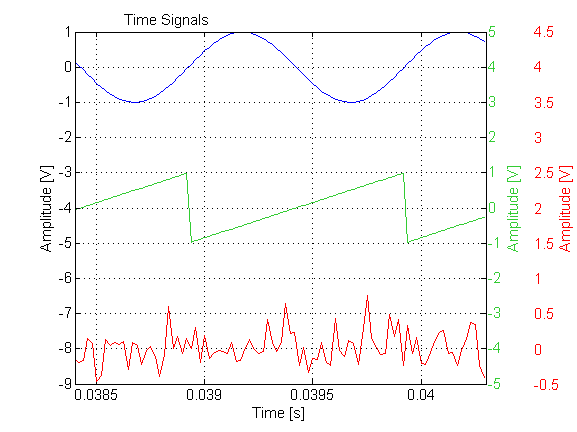

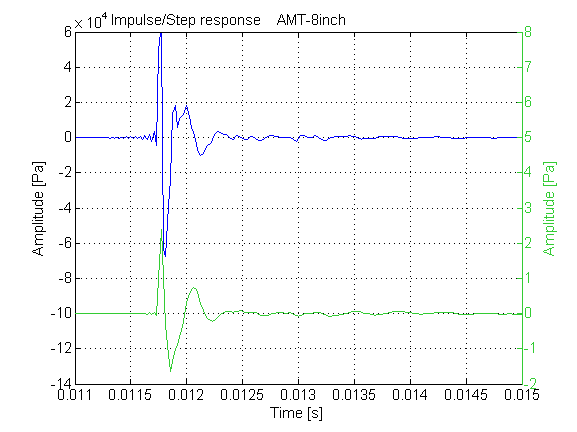

The following pictures show examples for time signal plots:
